SPECIFICATIONS

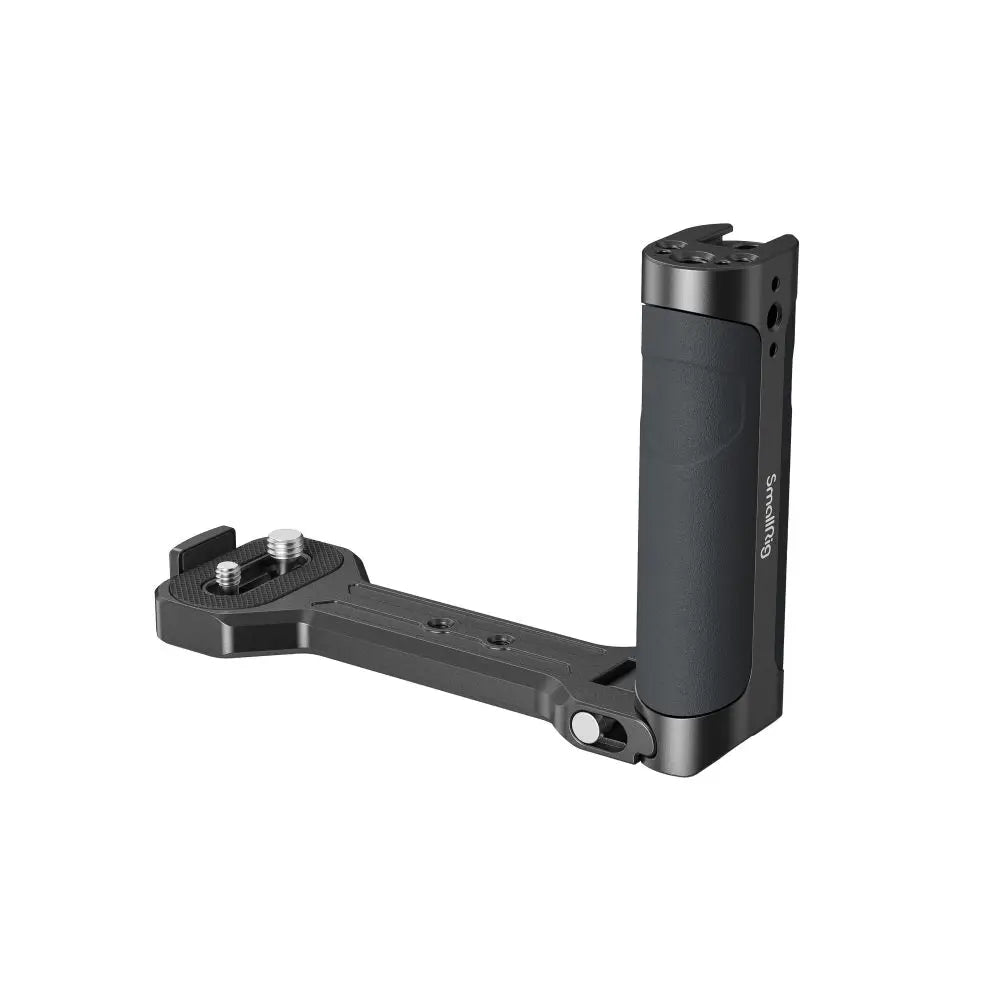

SmallRig Side Handle for Gimbals 2786C

1. Foldable design for easy storage, compatible with DJI, Zhiyun, and Moza handheld gimbals, and other cameras or devices with 1/4"-20 or 3/8"-16 threaded hole on the bottom；

2. Side anti-twist design for stable installation without deformation；

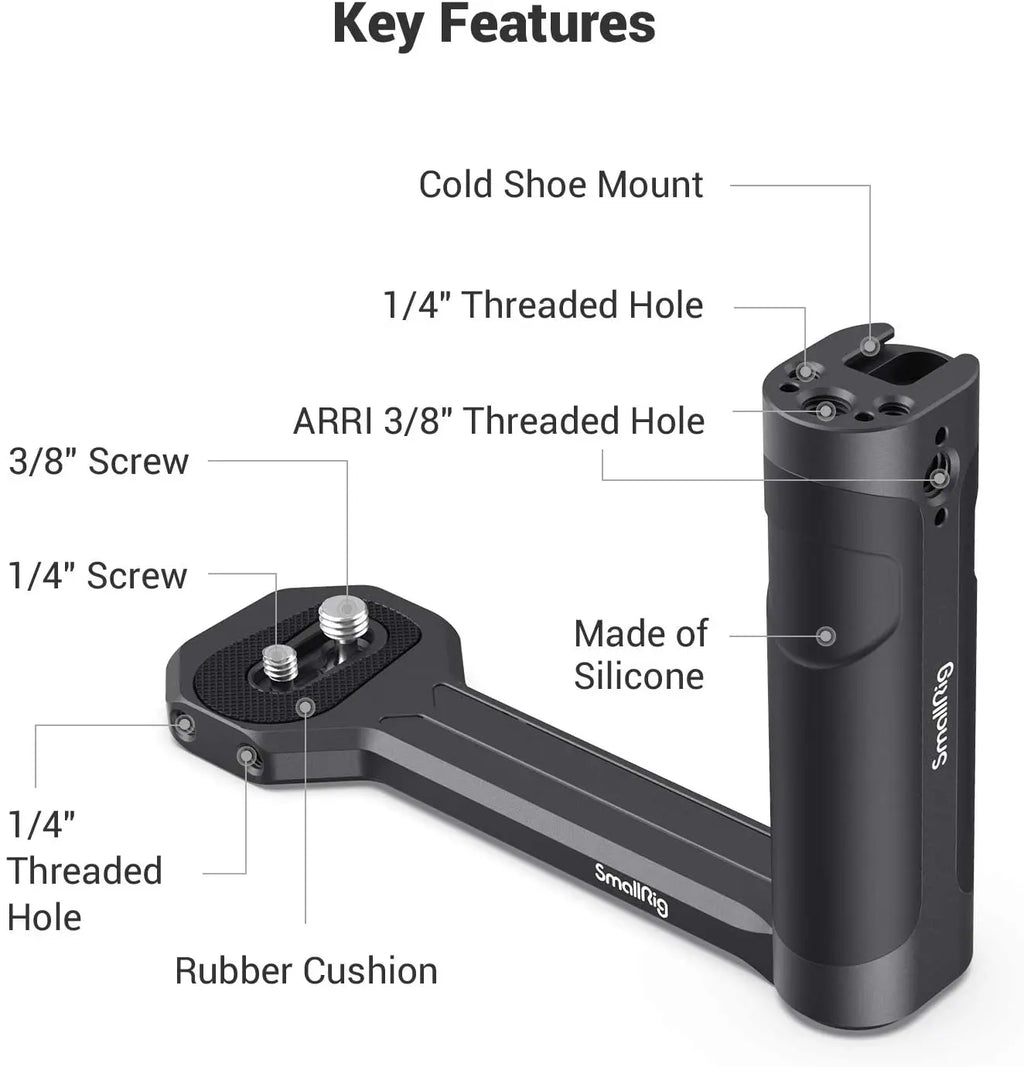

3. The top of the handle is equipped with 1/4"-20 threaded holes, ARRI 3/8" -16 threaded holes & cold shoe mounts, for attaching the monitor, microphone, wireless transmitter, and action cameras, etc.

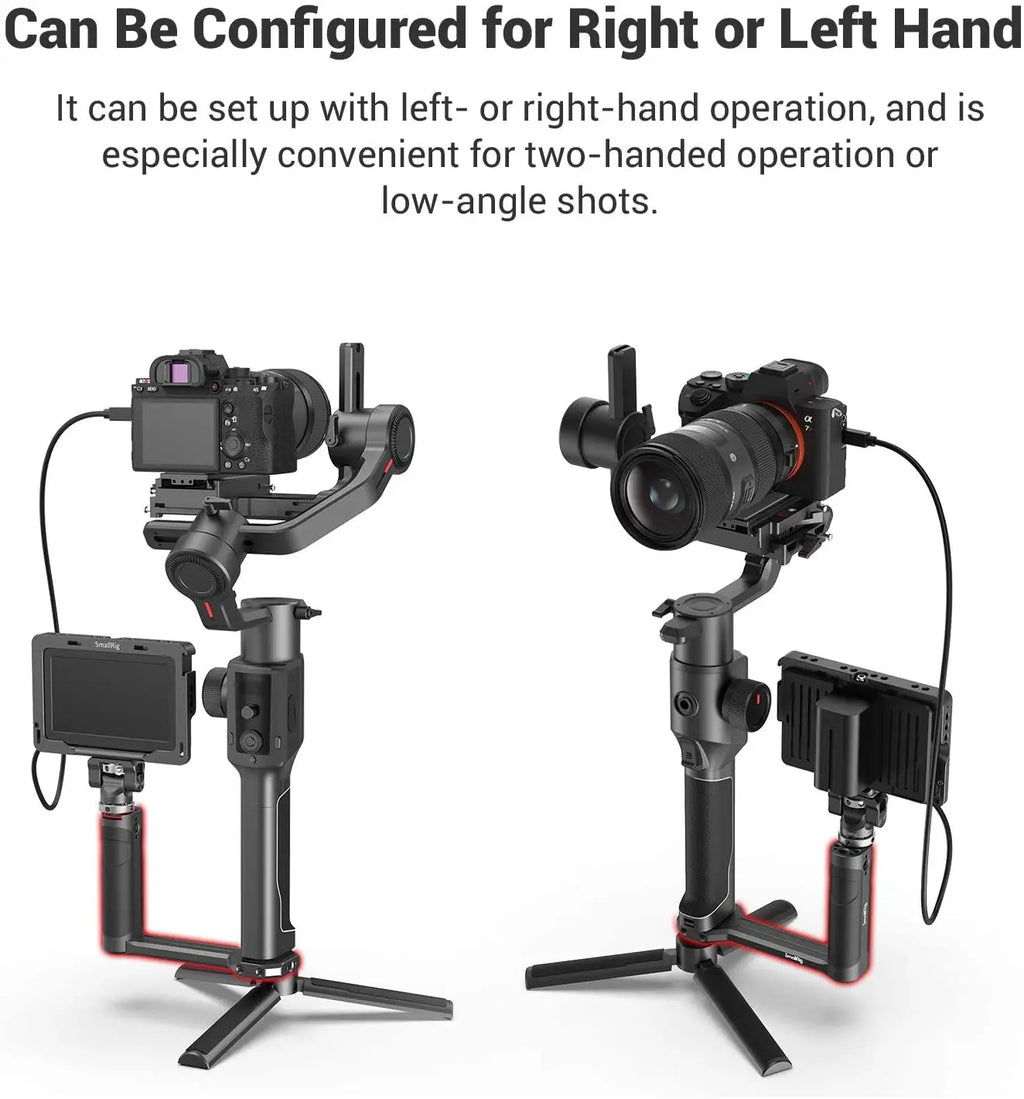

4. Can be configured for the right or left hand, easier control than handheld mode;

5. Two 1/4"-20 threaded holes on the bottom for attaching the Mini V-Lock Assembly Kit MD2801B.

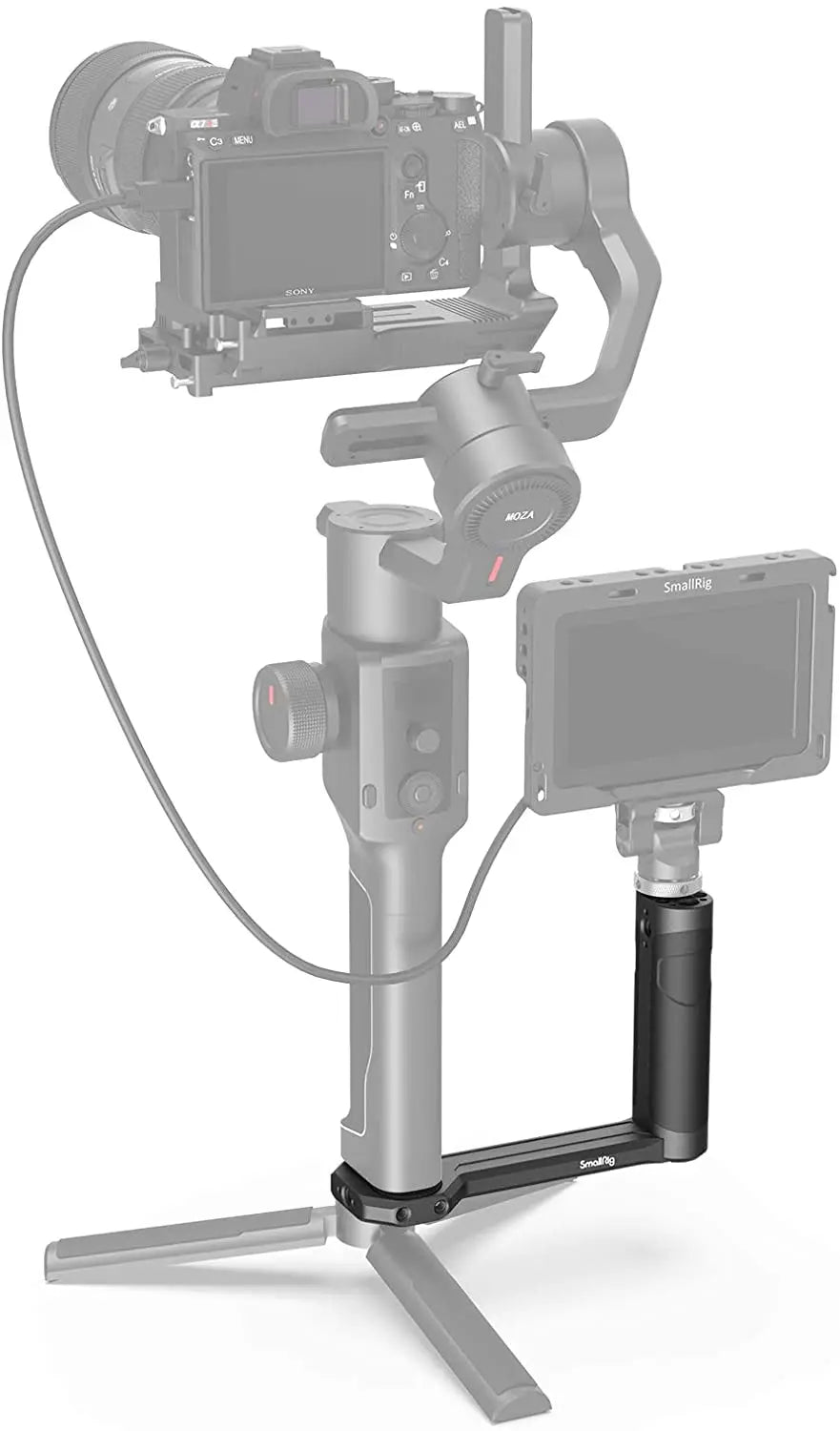

SmallRig Side Handle for Gimbals 2786C is designed to reduce arm fatigue and provide accessory mounts when shooting with your gimbals. This ergonomically-designed handle enables you to hold your gimbals with two hands to reduce the weight stress on one hand. The foldable design makes the handle easy to store and carry. It is designed with an anti-twist plate on the side for stably attaching the stabilizer and camera in the front, rear, and left positions. It connects to the bottom of the gimbal via 1/4"-20 or 3/8"-16 screws, which can be mounted on the left or right side of the stabilizer. The cross arm of the handle is designed with two 1/4"-20 threaded holes for attaching the Mini V-Lock Assembly Kit MD2801B, the 1/4"-20 threaded holes, ARRI 3/8" -16 threaded holes & cold shoe mounts, for attaching the Swivel and Tilt Adjustable Monitor Mount 2903B, Magic Arm with Dual Ball Heads (1/4"-20 Screws) 3873, microphone, wireless transmitter, etc. A flat-head screwdriver is stored at the bottom to secure the mounting screw.

Designer: Tracy Joy

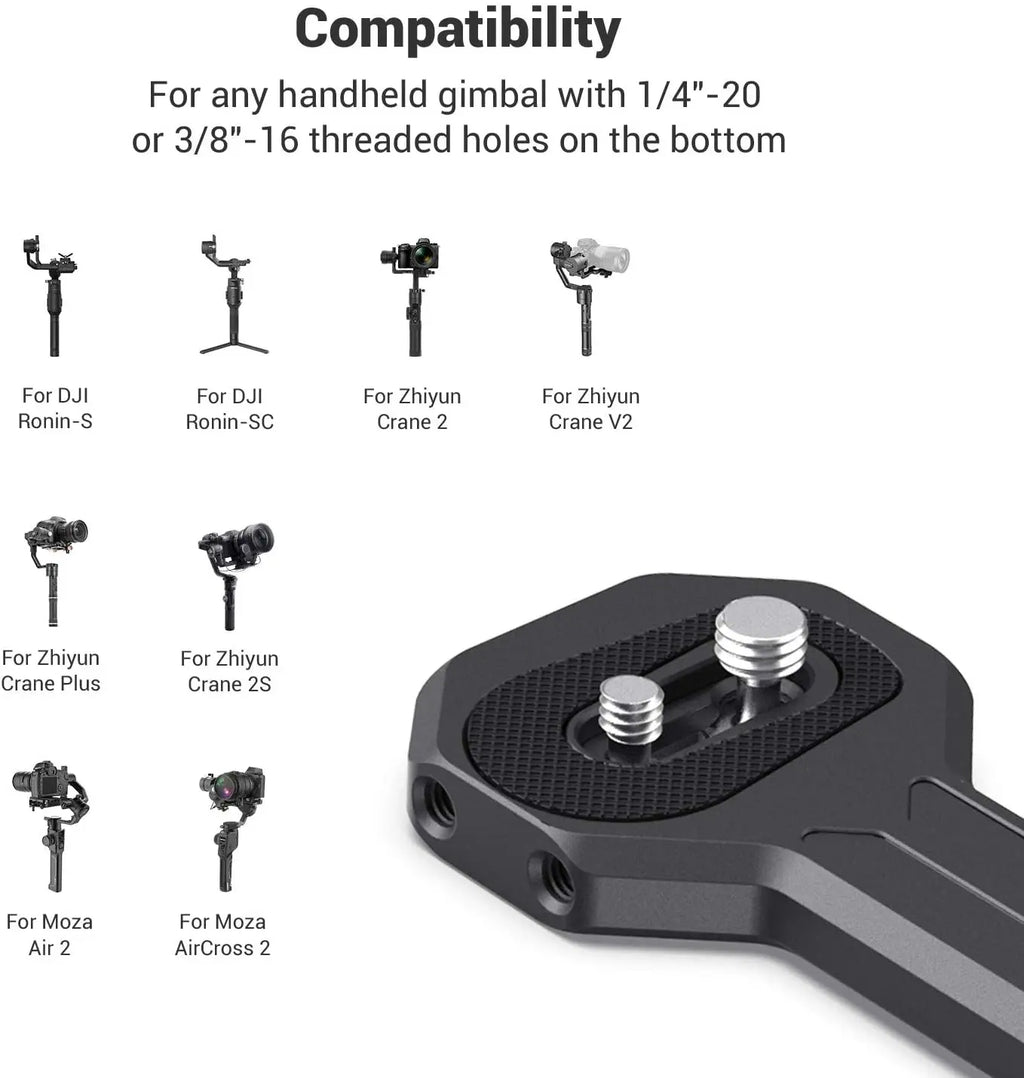

Compatibility:
FOR DJI Ronin-S / Ronin-SC
FOR DJI RS 2 / RSC 2
FOR DJI RS 3 / RS 3 Pro / RS 3 Mini

FOR DJI RS 4 / RS 4 Pro
FOR Zhiyun Crane 2S / Crane 2 / Crane V2 Series
FOR Moza Air 2 / Moza AirCross 2
Any camera or handheld gimbal with 1/4"-20 or 3/8"-16 threaded hole on the bottom.

In the Box:
Handle x 1

Specifications

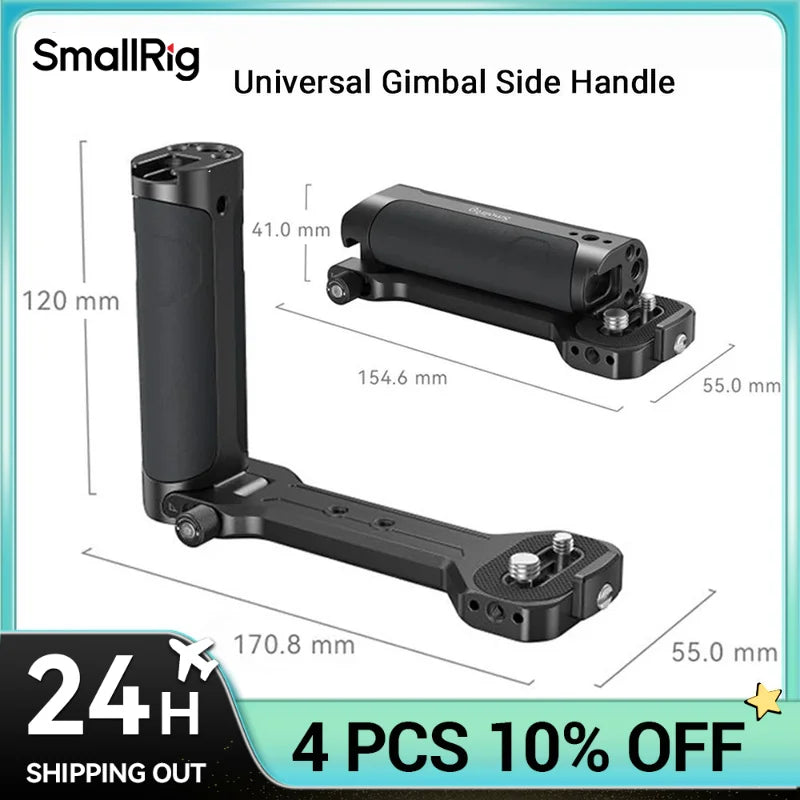

Product Dimensions: 170.8 x 120.0 x 55.0mm
Package Dimensions: 176.0 x 53.0 x 55.0mm
Product Weight: 296.0 ± 5.0g
Package Weight: 336.0 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel, Brass, Silicone
