iFlight iPower GM4108H-120T Gimbal Brushless Motor
$83.82 AUD
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: NoEnName_Null
Choice: yes
For Vehicle Type: Airplanes
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: iFlight iPower GM4108H-120T Gimbal Motor
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motor
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Technical parameters: value 2
Tool Supplies: Assembly Category
Upgrade Parts/Accessories: Frame
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Specifications
Model: GM4108H
Motor Out Diameter: Ф47±0.05mm
Motor Height: 32.3±0.2mm
Hollow Shaft(OD): Ф10-0.008/-0.012mm
Hollow Shaft(ID): 8+0.05/0mm
Wire Length: 265±3mm
Cable AWG: #24

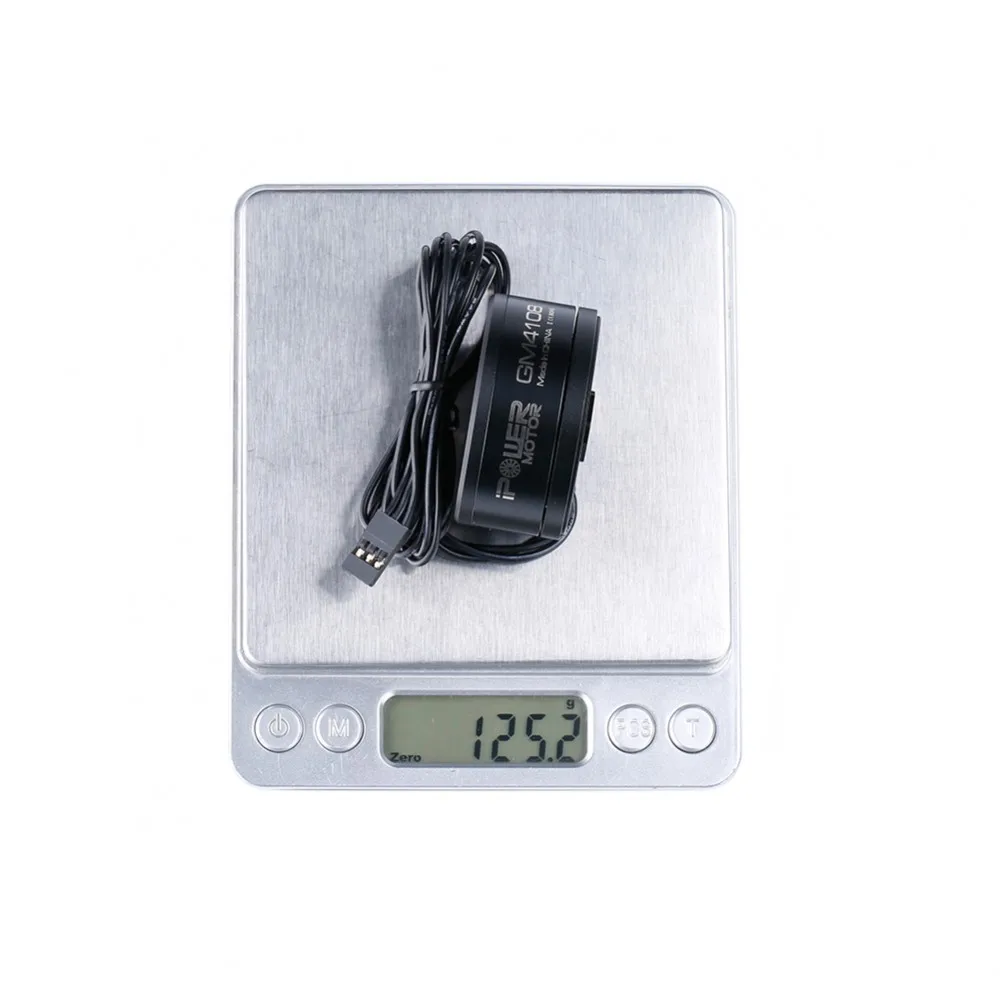

Motor Weight: 124±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 0.07±0.1A
No-load volts: 20V
No-load Rpm: 513~567 RPM
Load current: 1.5A
Load volts: 20V
Load torque(g·cm): 1200-1800
Motor internal resistance: 11.1Ω±5%（Resistance varies with temperature）
High voltage test: DC500V 1mA@2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): Clockwise
High-low temperature test：
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature：Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60℃;10~90%RH
Packing List
1 x iPower GM4108H-120T Gimbal Motor
